Custom Corrugated Boxes: The Complete Packaging Guide

Corrugated is the workhorse of shipping. It is the fluted board behind almost every parcel, carton, and pallet in the supply chain. Picking the right box is a balance. You want to guard the product without paying too much for board or freight. At Discount Box Printing, we make custom corrugated boxes factory-direct for brands across the United States. This guide walks through how corrugated board works, the flute and strength grades that matter, box styles, printing, green options, and how to order at true wholesale prices.

What Are Custom Corrugated Boxes?

Custom corrugated boxes are shipping boxes made from fluted fiberboard. The board is a wavy inner layer glued between flat liner sheets. We cut and print it to your exact product and brand. The fluting is what sets it apart from the solid paperboard in folding cartons. Those air-filled arches give the board its cushion and stacking strength. Corrugated is also the base of our custom shipping boxes and custom mailer boxes, which are just specific board formats.

How Corrugated Board Works

A sheet of board has two parts. The liners are the flat outer faces. The medium is the wavy fluting glued between them. The number of fluted layers sets the wall type:

• Single wall — one fluted medium between two liners; the standard for most boxes and mailers.
• Double wall — two fluted layers for heavy, fragile, or stacked goods.
• Triple wall — three fluted layers for heavy loads that near wooden-crate strength.

Flute Types

The flute size sets the thickness, the cushion, and the print surface of the board. Here are the common profiles:

Flute	Approx. Thickness	Best For
A-flute	~4.8 mm	Maximum cushioning for fragile goods
C-flute	~4.0 mm	General shipping — the most common
B-flute	~3.2 mm	Crush resistance and a flat print surface
E-flute	~1.6 mm	Thin, printable retail boxes and mailers
F-flute	~0.8 mm	Small, lightweight retail packaging

Double-wall boards combine two flutes, such as BC or EB. That merges cushion with a smooth print face.

Liner Weights and Board Grades

The flute sets the thickness. The liners set the strength and the look. Each liner is sold in pounds per thousand square feet (lb test) or in grams per square meter (GSM). Common grades:

• 26# kraft liner (~127 GSM) — a light wall for retail and inner cartons.
• 33# kraft liner (~160 GSM) — a mid-weight for general shipping.
• 42# kraft liner (~205 GSM) — a heavier wall for e-commerce boxes.
• 69# kraft liner (~337 GSM) — a thick wall for freight and double-wall builds.

Kraft liner is the brown recycled face most buyers picture. Test liner is a recycled grade that costs less. For a bright print surface, pick a white top liner (mottled white, oyster, or coated white). It lets logos and photos pop without extra lamination. The liner choice ties straight into our custom kraft paper range.

Board Strength: ECT vs Burst vs BCT

Three tests describe how strong a box is. Each one answers a different question:

• ECT (Edge Crush Test) — this measures stacking strength. A machine crushes the board on its edge, and the result is given in pounds per inch. A higher ECT means the box holds more weight stacked on top. That makes ECT the modern way to choose board for pallet shipping.
• Burst / Mullen test — this measures how well the board resists puncture and rough handling, in pounds per square inch. It is the older standard. It is still useful for boxes that take impact in transit.
• BCT (Box Compression Test) — this measures how much top-load force the finished, built box takes before it crushes. It predicts real stacking in a warehouse or on a pallet.

For most e-commerce and retail shipments, a 32 ECT single-wall box is the standard. Heavier or stacked products move up to 44 ECT or double wall. We help you match the grade to the product. The box protects without over-spending on board.

Common Corrugated Box Styles

• Regular slotted carton (RSC) — the classic shipping box where all flaps are the same length; cheap and the most widely used.
• Half-slotted carton (HSC) — an RSC without a top, often used with a separate lid.
• Full-overlap (FOL) — overlapping flaps for extra stacking and edge strength.

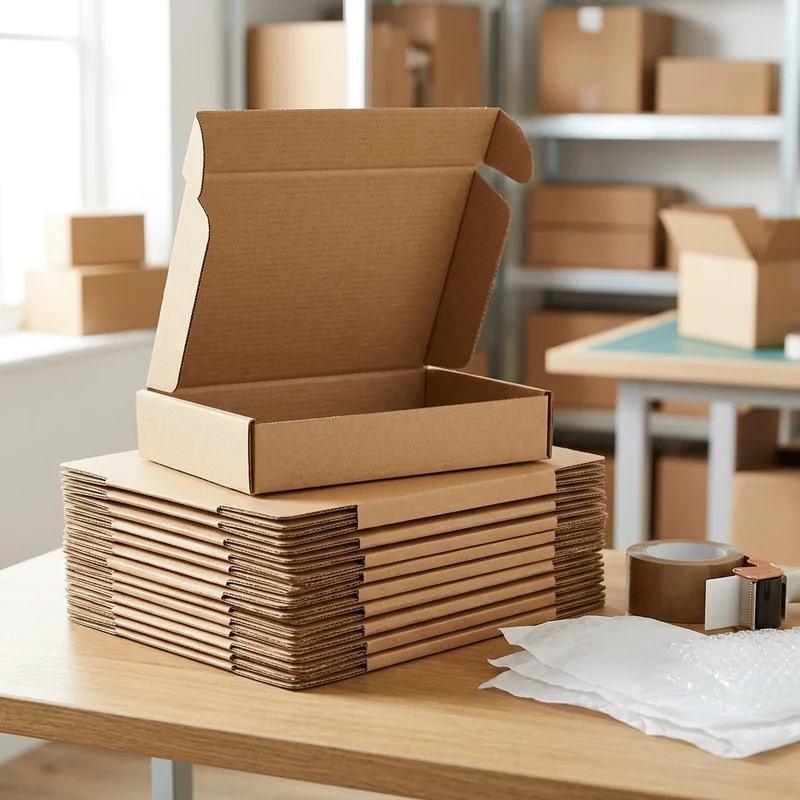

• Die-cut mailer — a one-piece self-locking box for direct-to-consumer shipments; see our mailer box guide.
• Telescoping and tray styles — separate lid and base for heavy or oversized goods.

Sizes and Right-Sizing

Corrugated boxes are measured by interior size (length × width × depth) so the product fits without crushing. Carriers bill by box size as well as weight. So a box right-sized to the product ships cheaper and needs less void fill. These are common starting sizes, all made to order:

Use	Interior (L × W × D)	Typical Board
Small parcel	8 × 6 × 4 in	32 ECT single wall
Medium shipper	12 × 10 × 8 in	32 ECT single wall
Large / heavy	18 × 14 × 12 in	44 ECT or double wall
Flat / e-commerce mailer	10 × 8 × 2 in	E- or B-flute

Protecting the Product Inside

Right-sizing cuts freight. But a fragile product also needs cushioning for the carrier trip. The common options:

• Die-cut inserts — corrugated or chipboard trays that lock the product in place.
• Molded pulp — recycled fiber inserts shaped to the product; curbside recyclable.
• Foam inserts — dense cushioning for electronics, glass, or medical goods.
• Void fill — paper or air pillows that fill empty space inside the box.
• Dunnage — kraft honeycomb or crumpled kraft paper for heavy or odd shapes.

Brands that ship direct to consumers often test packs to ISTA 3A, the drop-and-vibe standard for parcel shipping. Amazon sellers who build boxes as SIOC (ship-in-own-container) must pass the same kind of test. We match the board grade and the insert to the test level your product needs.

Printing on Corrugated

Corrugated can be printed several ways, based on coverage and budget. Direct flexo printing suits logos and simple graphics. Litho-lam suits full-color photo artwork. Digital printing suits short runs and quick turnaround. We print in CMYK and PMS spot colors and can add protective coats. So a shipping box doubles as branding on the doorstep.

Artwork and Dieline Setup

Clean print starts with a clean file. A dieline is the flat cut-and-crease pattern of the box. We send a free dieline sized to your product so your designer sets art inside the right lines. Keep a 1/8-inch bleed on every edge, a safety margin away from the cut and score, and all brand color in Pantone (PMS) values for an exact match. Supply the art as a print-ready PDF/X file.

Box styles also carry a short code. The FEFCO code system numbers common styles so factories around the world speak the same spec — 0201 is the classic RSC, 0427 is a die-cut mailer. Finishes add the last polish — aqueous coating for a soft matte seal, UV coating for a high-gloss hit, or spot varnish to pick out a logo. Ask our team if you are not sure which coat fits your use.

Sustainable Corrugated Boxes

Corrugated is one of the most recycled materials in the United States. That makes it a green choice by nature. Recycled-content board, a curbside-recycled build, and soy- or water-based inks lower the footprint further. Right-sizing cuts both material and void fill. Coverage from Packaging World notes that recyclable, paper-based packaging keeps gaining ground as brands answer both new rules and buyer demand. Our eco-friendly shipping boxes are built on exactly these materials.

Corrugated Box Types and Uses

The table below maps common board formats to the pages where you can see options and request a quote.

Format	Best For	Page
Shipping boxes	General parcels and freight	Branded shipping boxes
Corrugated mailers	Branded DTC shipments	Corrugated mailer boxes
Printed mailers	Full-color unboxing	Custom printed mailer boxes
Eco shipping boxes	Recycled-content shipping	Eco-friendly shipping boxes
Wholesale volume	High-volume fulfillment	Wholesale mailer boxes

Wholesale Custom Corrugated Boxes: Cost and Minimums

Price depends on size, board grade (flute and ECT), quantity, and printing. Because we make them factory-direct with no setup fees, wholesale pricing sits below reseller rates. And per-unit cost drops sharply as quantity rises. Corrugated is especially cheap at volume. For exact pricing and bulk-tier breaks on your specs, request a free quote.

How to Order Custom Corrugated Boxes

Getting started is simple. Share your product size and weight plus any artwork. Get a free dieline and digital proof. Approve the proof, and we make them factory-direct at wholesale prices with fast turnaround. Not sure which flute or ECT your product needs? Order a free sample kit to compare board grades. Or request a free quote and our team will suggest the right build.

The Bottom Line

Custom corrugated boxes come down to matching the board to the product. You match the flute, wall, and ECT to the weight and journey. Then you right-size it so it ships safely with no wasted material or freight. Get that balance right and the box guards the product, lowers cost, and carries the brand. That is exactly what our team is here to help you do.
